Customize Your Order 480X480X30mm LED Display Automatic Glue Dispenser with Epoxy Glue

Model NO. : PG-200

Packaging : Cartons

Xyz Working Area : 480X480X30mm

Size : L1000xw800xh1500mm

N.W. : 180kg

Ratio : From 1:1 to 10:1

Stiring Method : Static or Dynamic

out-Gluing Rate : 5-66g/5s

Mixing Precision : +/-1%

Container Volume : a:25L B:10L

Transport Package : Carton Box Lined with Foaming PC

Specification : CE

Trademark : Daheng or OEM

Origin : Guangzhou China

HS Code : 8424899990

Supply Ability : 50PCS / Month

Automatic Grade : Automatic

Gluing Mode : Plunger Pump

Packaging Material : Plastic

Glue Type : Epoxy, Silicone, PU & Other Double Components

Application : Machinery & Hardware, Commodity

Driven Type : Electric

Customization : Available | Customized Request

Contact Now

Automatic Glue Dispenser for LED Display
Customize Your Order 480X480X30mm LED Display Automatic Glue Dispenser with Epoxy Glue


I. Tech Data
Glue Ratio: From 1: 1 to 10: 1
Stirring mode: Static(standard)/dynamic(optional)
XYZ working area: 480*480*30mm
Data Memory: 20
Program Method: Teach & show-how method
Size: 1100 x 800 x 1500mm
Input Air: 0.5~0.7 MPa
Power Input: AC220V
Customize Your Order 480X480X30mm LED Display Automatic Glue Dispenser with Epoxy Glue


II. Main Characters
1. It is an automatic system of simultaneous glue metering, mixing and dispensing.
2. You can adjust the glue ratio and out-put quantity based on needs.
3. The high precision of mixing helps to avoid possible glue waste.
4. Easy to program, disassembly and install.
5. Automatic cleaning system can be added into the device if needed.
6. Wide applications

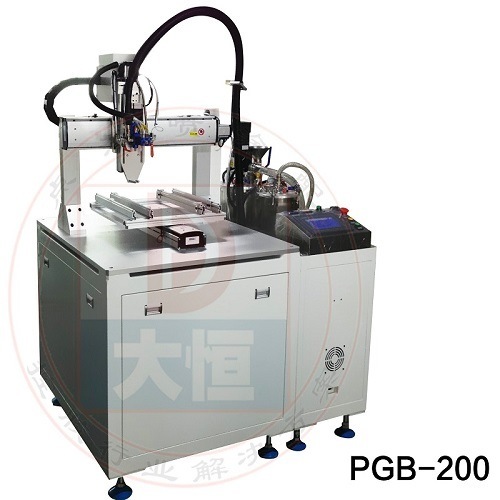

Model & Type PG-200 Automatic Glue Dispenser for LED display
Certificate CE, SGS
Dimension 1500x800x1500mm
N.W. 260kg
XYZ Working Area 480x480x30mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 3kw - 5kw
Additional Functions Heating, Vacuum, Self-refilling, Self-cleaning
Application LED module, display, LED lights, power supply, driver, motor, sensor, and transformer and so on^
