Advanced Automatic Gluing Dispenser Machine with Static or Dynamic Stiring Method

Model NO. : PG-1200

Packaging : Cartons

Xyz Working Area : 1200X1200X30mm

Size : L2000xw1600xh1500mm

N.W. : 450kg

Ratio : From 1:1 to 10:1

Stiring Method : Static or Dynamic

out-Gluing Rate : 5-66g/5s

Mixing Precision : +/-1%

Container Volume : a:25L B:10L

Name : Automatic Gluing Dispenser Machine

Transport Package : Carton Box Lined with Foaming PC

Specification : CE

Trademark : Daheng or OEM

Origin : Guangzhou China

HS Code : 85021920

Supply Ability : 50PCS / Month

Automatic Grade : Automatic

Gluing Mode : Plunger Pump

Packaging Material : Plastic

Glue Type : Epoxy, Silicone, PU & Other Double Components

Application : Machinery & Hardware, Commodity

Driven Type : Electric

Customization : Available | Customized Request

Contact Now

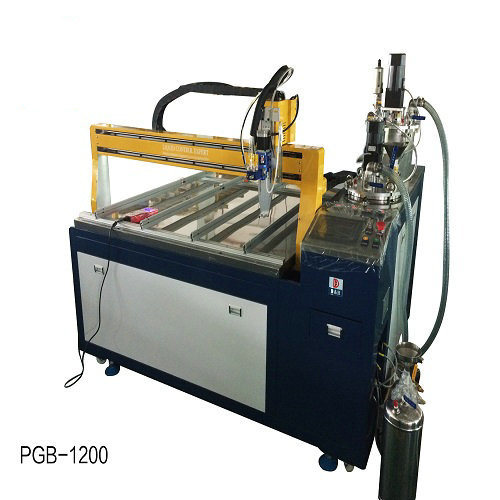

Automatic Gluing Dispenser Machine (PG-1200) 1200X1200X30mm

Advanced Automatic Gluing Dispenser Machine with Static or Dynamic Stiring Method


I.Tech Data
Glue Ratio: from 1:1 to 10:1
Stirring mode: static(standard)/dynamic(optional)
XYZ working area: 480*1200*30mm
Data Memory: 20
Program Method: teach & show-how method
Size: 1100 x 800 x 1500mm
Input Air: 0.5~0.7 MPa
Power Input: AC220V

Advanced Automatic Gluing Dispenser Machine with Static or Dynamic Stiring Method


II. Main Characters
1.It is an automatic system of simultaneous glue metering, mixing and dispensing.
2.You can adjust the glue ratio and out-put quantity based on needs.
3.The high precision of mixing helps to avoid possible glue waste.
4. Easy to program, disassembly and install.
5. Automatic cleaning system can be added into the device if needed.
6. Wide applications

Model & Type		 PG-1200 Automatic Glue Dispenser Machine
Certificate CE, SGS
Dimension 2000x1600x1500mm
N.W. 450kg
XYZ Working Area 1200x1200x80mm
Flow Speed 0-66g/5s, or customized
Moving Speed 0-300mm per second
Glue & Ratio 1:1 to 20:1, Epoxy, Silicone, PU, UV
Repeatability +/-0.02g
Accuracy +/- 1%
Power AC220V or AC 380V
Total Power Consume 1.5kw
Additional Function Heating, Vacuum, Self-refilling, Self-cleaning
Application LED rigid bar, wall washing lamp, crystal photo album
